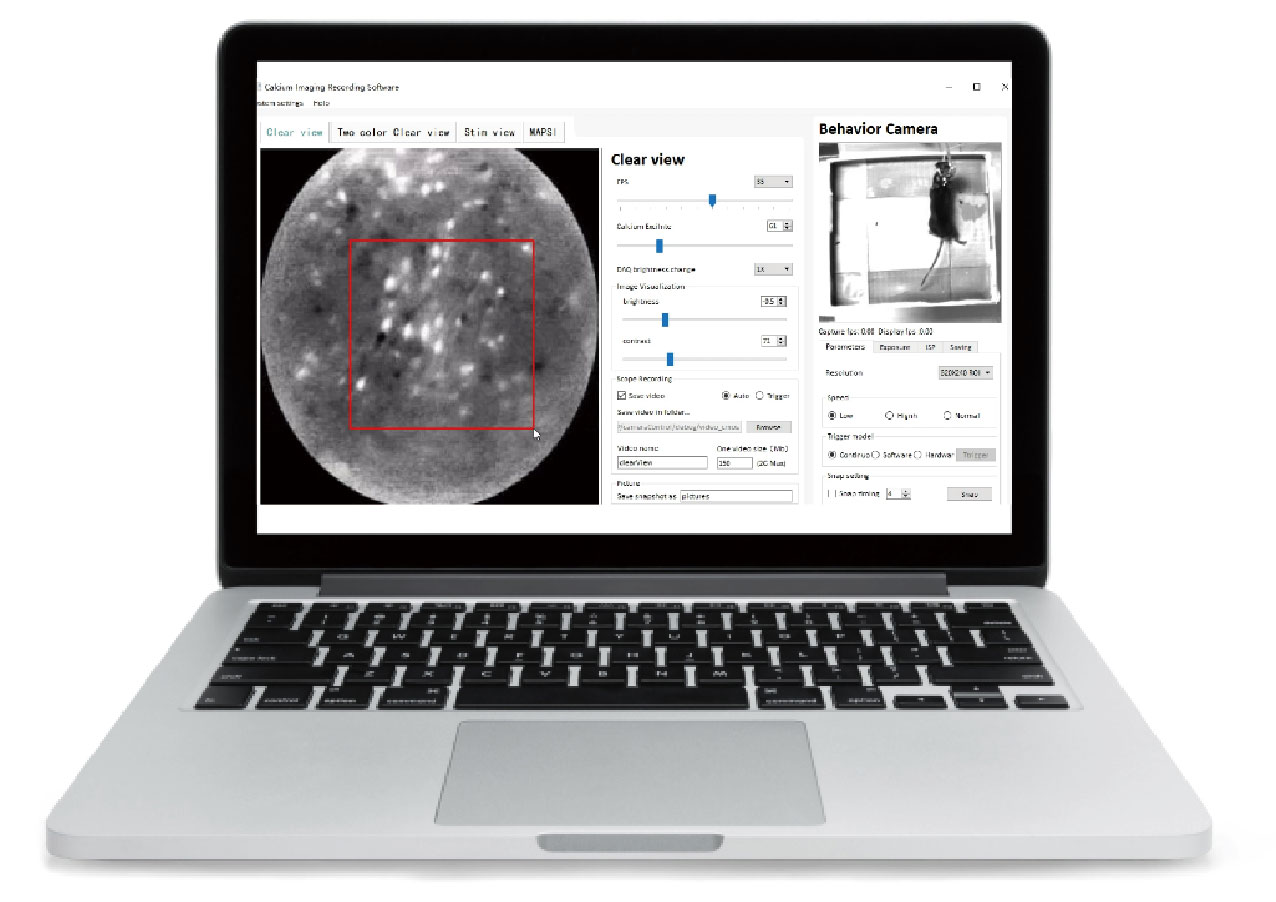

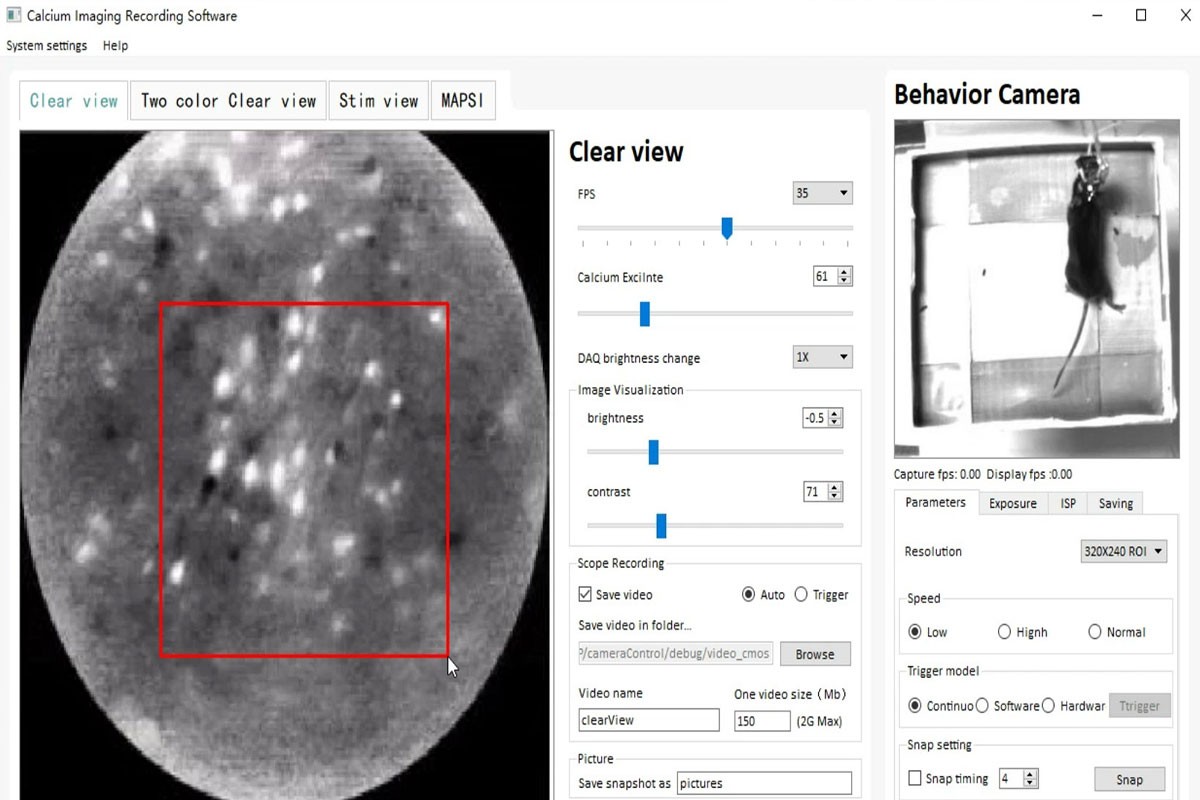

Data Acquisition Software Key Features：
l Real-time online preview of video data with ΔF/F visualization highlighting single neuron activity;
l Software-controlled auto-focus significantly improves surgery success rate;
l Sync experimental events using IO configuration for behavior and external devices ;
l Multi-plane simultaneous imaging;
l Custom recording schedules for experimental automation;
l Control microscope frame rate, LED power, exposure time, gain;
l Preview data using dF/F ;
l Switch trigger & sync ports to external devices;
Image Demo
 |  |

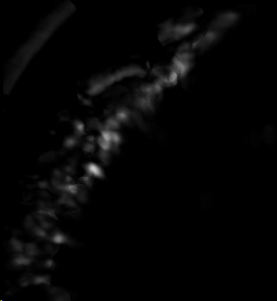

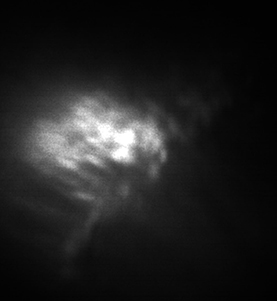

| Hippocampus | Thalamus |
 |  |

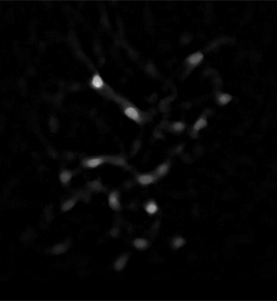

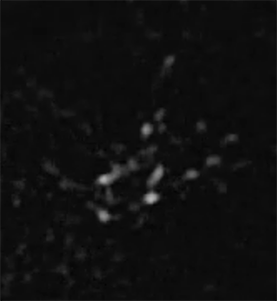

| Striatum | Brainstem |
Data Acquisition Software Specs：
| Description | Specifications |
| System requirements |
64-bit version Windows 10 or later Mac: OSX 10.11 and OSX 10.12 Linux: CentOS 7 |
| Output formats |
Avi. video stream External inputs TTL, timestamp: csv import csv Behavior data (e.g. ANY-maze) |
| Video sync | Support camera brands like FLIR, Basler, Hikvision, Hisign etc. for hardware trigger frame high precision video sync recordings |
| APIs | Matlab API (Matlab 2016b) Python API (Python 3.6) |
